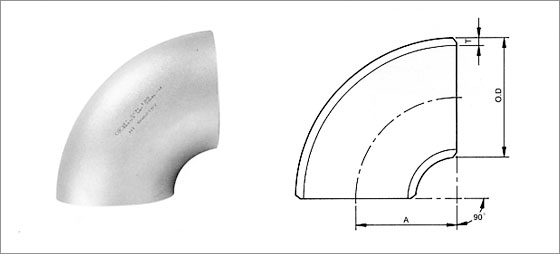

>> 短徑彎頭(90 ELBOW SR) ............................................................................................

Stainless Steel Butt-Welding Pipe Fittings
DIMENSIONS
Nominal Pipe Size.
Outside Dia.
(O.D.)
90ELBOW LR
A
45ELBOW LR
B
90ELBOW SR
A
Caps
E
(A)
(B)
15
1/2"
21.7
38.1
15.8
-
25.4
20
3/4"
27.2
38.1
15.8
-
25.4
25
1"
34.0
38.1
15.8
25.4
38.1
32
1-1/4"
42.7
47.6
19.7
31.8
38.1
40
1-1/2"
48.6
57.2
23.7
38.1
38.1
50
2"
60.5
76.2
31.6
50.8
38.1
65
2-1/2"
76.3
95.3
39.5
63.5
38.1
80
3"
89.1
114.3
47.3
76.2
50.8
90
3-1/2"
101.6
133.4
55.3
88.9
63.5
100
4"
114.3
152.4
63.1
101.6
63.5
125
5"
139.8
190.5
78.9
127.0
76.2
150
6"
165.2
228.6
94.7
152.4
88.9
200
8"
216.3
304.8
126.3
203.2
101.6
250
10"
267.4
381.0
157.8
254.0
127.0
300
12"
318.5
457.2
189.4
304.8
152.4
350
14"
355.6
533.4
220.9
355.6
165.1
400
16"
406.4
609.6
252.5
406.4
177.8
450
18"
457.2
658.8
284.1
457.2
203.2
500
20"
508.0
762.0
315.6
508.0
228.6
550
22"
558.8
838.2
347.2
558.8
254.0
600
26"
660.4

990.6
410.3
660.4
266.7
700
28"
711.2
1066.8
441.9
711.2
-
750
30"
762.0
1143.0
473.4
762.0
-
800
32"
812.8
1219.2
505.0
812.8
-
850
34"
863.6
1295.4
536.6
863.6
-
900
36"
914.4
1371.6
568.1
914.4
-
950
38"
965.2
1447.8
599.7
965.2
-
1000
40"
1016.0
1524.0
631.2
1016.0
-
1100
44"
1117.6
1676.4
694.4
1117.6
-
1150
46"
1168.4
1752.6
725.9
1168.4
-
1200
48"
1219.2
1828.8
757.5
1219.2
-
