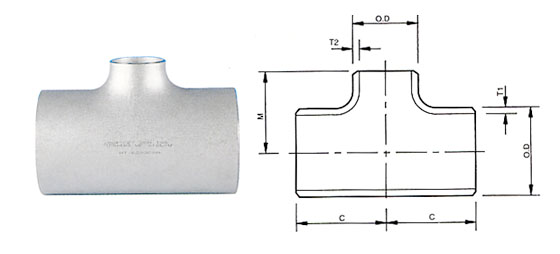

>> 異徑三通(Reducer Tee)...............................................................................................

Stainless Stel Butt-Welding Pipe Fittings
DIMENSIONS
Nominal
Pipe Size
 Outside Dia. (OD1, OD2)
C
M
(A)
(B)
OD1
OD2
20
15
3/4"
1/2"
27.2
21.7
28.6
28.6
25
20
1"
3/4"
34.0
27.2
38.1
38.1
15
1/2"
21.7
38.1
32
25
1-1/4"
1"
42.7
34.0
47.6
47.6
20
3/4"
27.2
47.6
15
1/2"
21.7
47.6
40
32
1-1/2"
1-1/4"
48.6
42.7
57.2
57.2
25
1"
34.0
57.2
20
3/4"
27.2
57.2
15
1/2"
21.7
57.2
50
40
2"
1-1/2"
60.5
48.6
63.5
60.3
32
1-1/4"
42.7
57.2
25
1"
34.0
50.8
20
3/4"
27.2
44.5
65
50
2-1/2"
2"
76.3
60.5
76.2
69.9
40
1-1/2"
48.6
66.7
32
1-1/4"
42.7
63.5
25
1"
34.0
57.2
80
65
3"
2-1/2"
89.1
76.3
85.7
82.6
50
2"
60.5
76.2
40
1-1/2"
48.6
73.0
32
1-1/4"
42.7
69.9
90
80
3-1/2"
3"
101.6
89.1
95.3
92.1
65
2-1/2"
76.3
88.9
50
2"
60.5
82.6
40
1-1/2"
48.6
79.4
100
90
4"
3-1/2"
114.3
101.6
104.8
101.6
80
3"
89.1
98.4
65
2-1/2"
76.3
95.3
50
2"
60.5
88.9
40
2-1/2"
48.6
85.7
125
100
5"
4"
139.8
114.3
123.8
117.5
90
3-1/2"
101.6
114.3
80
3"
89.1
111.1
65
2-1/2"
76.3
108.0
50
2"
60.5
104.8
150
125
6"
5"
165.2
139.8
142.9
136.5
100
4"
114.3
130.2
90
3-1/2"
101.6
127.0
80
3"
89.1
123.8
65
2-1/2"
76.3
120.7
200
150
8"
6"
216.3
165.2
177.8
168.3
125
5"
139.8
161.9
100
4"
114.3
155.6
90
3-1/2"
101.6
152.4
250
200
10"
8"
267.4
216.3
215.9
203.2
150
6"
165.2
193.7
125
5"
139.8
190.5
100
4"
114.3
184.2
300
250
12"
10"
318.5
267.4
254.0
241.3
200
8"
165.2
228.6
150
6"
139.8
219.1
125
5"
114.3
215.9
350
300
14"
12"
355.6
318.5
279.4
269.9
250
10"
267.4
257.2
200
8"
165.2
247.7
150
6"
139.8
238.1
400
350
16"
14"
406.4
355.6
304.8
304.8
300
12"
318.5
295.3
250
10"
267.4
282.6
200
8"
216.3
273.1
200
6"
165.2
263.5
450
400
18"
16"
457.2
406.4
342.9
330.2
350
14"
355.6
330.2
300
12"
318.5
320.7
250
10"
267.4
308.0
500
450
20"
18"
508.0
457.2
381.0
368.3
400
16"
406.4
355.6
350
14"
355.4
355.6
300
12"
318.5
346.1
250
10"
267.4
333.4
200
8"
216.3
323.9
550
500
22"
20"
558.8
508.0
419.1
406.4
450
18"
457.2
393.7
400
16"
406.4
381.0
600
550
24"
22"
609.6
558.8
431.8
431.8
500
20"
508.0
431.8
450
18"
457.2
419.1
650
600
26"
24"
660.4
609.6
495.3
482.6
550
22"
558.8
469.9
500
20"
508.0
457.2
700
650
28"
26"
711.2
660.4
520.7
520.7
600
24"
609.6
508.0
550
22"
558.8
495.3
750
700
30"
28"
762.0
711.2
558.8
546.1
650
26"
660.4
546.1
600
24"
609.6
533.4
800
750
32"
30"
812.8
762.0
596.9
584.2
700
28"
711.2
571.5
650
26"
660.4
571.5
850
800
34"
32"
863.6
812.8
635.0
622.3
750
30"
762.0
609.6
700
28"
711.2
596.9
900
850
36"
34"
914.4
863.6
673.1
660.4
800
32"
812.8
647.7
750
30"
762.0
635.0
950
900
38"
36"
965.2
914.4
711.2
711.2
850
34"
863.6
698.5
800
32"
812.8
685.8
1000
950
40"
38"
1016.0
965.2
749.3
749.3
900
36"
914.4
736.6
950
34"
863.6
723.9
1050
1000
42"
40"
1066.8
1016.0
762.0
711.2
950
38"
965.2
711.2
900
36"
914.4
711.2
1100
1050
44"
42"
1117.6
1066.8
812.8
762.0
1000
40"
1016.0
749.3
950
38"
965.2
736.6
1150
1100
46"
44"
1168.4
1117.6
850.9
800.1
1050
42"
1066.8
787.4
1000
40"
1016.0
774.7
1200
1150
48"
46"
1219.2
1168.4
889.0
838.2
1100
44"
1117.6
838.2
1050
42"
1066.8
812.8

  • 管件規範：
    1. ASTM A403 WP-W . WP-S . WP-WX
      ANSI B16.9 . B16.28 & MSS SP-43
    2. JIS B2312 . B2312
  • 原料規範：
    1. 管ASTM A312 . 板ASTM A240
    2. 管JIS G3459 . 板JIS G4304
  • 材質種類：
    1. 304 . 304L . 316L；歡迎特殊材質來料加工
  • 厚度規範：
    ANSI B36.1 . B36.19 . JIS B2312 . B2313
    ( SCH 5S . 10S . 20S . 40S ; 2.0t ~ 12.0t )
