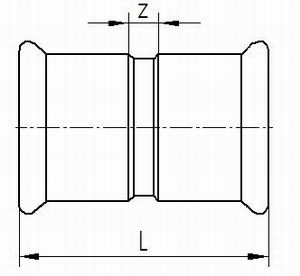

Coupling

Article

Nom dia

Outside diameter of pipe OD

L

Z

Muffe

Artikel

DN

RohrauBendurchmesser d

L

Z

DM-15

12

15

48

8

DM-18

15

18

48

8

DM-22

20

22

50

8

DM-28

25

28

54

8

DM-35

32

35

62

10

DM-42

40

42

71

11

DM-54

50

54

83

13

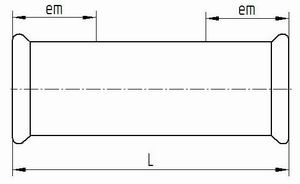

Slip coupling

Article

Nom dia

Outside diameter of pipe OD

L

Z

SchiebeMuffe

Artikel

DN

RohrauBendurchmesser d

L

em

DML-15

12

15

80

25

DML-18

15

18

80

25

DML-22

20

22

84

25

DML-28

25

28

91

30

DML-35

32

35

102

30

DML-42

40

42

120

40

DML-54

50

54

140

40

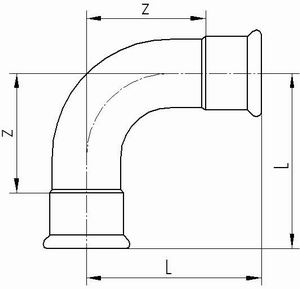

90° elbow

Article

Nom dia

Outside diameter of pipe OD

L

Z

Bogen 90°

Artikel

DN

RohrauBendurchmesser d

L

Z

DE9-15

12

15

49

29

DE9-18

15

18

53

33

DE9-22

20

22

61

40

DE9-28

25

28

72

49

DE9-35

32

35

122

96

DE9-42

40

42

166

136

DE9-54

50

54

200

165

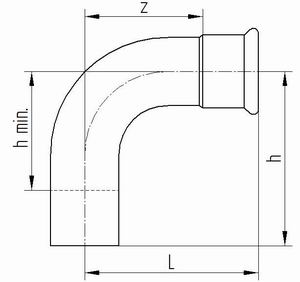

90° elbow with one plaine end

Article

Nom dia

Outside diameter of pipe OD

L     h

hmin.    Z

Bogen 90° mit einseitigem Einschiebende

Artikel

DN

RohrauBendurchmesser d

L     h

hmin.    Z

DE9S-15

12

15

49    55

55     29

DE9S-18

15

18

53    59

59     33

DE9S-22

20

22

61    67

67     40

DE9S-28

25

28

72    78

78     49

DE9S-35

32

35

122  130

120     96

DE9S-42

40

42

166  176

140   136

DE9S-54

50

54

200  211

165   165
