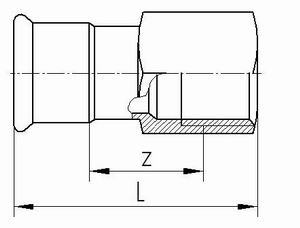

Female adaptor pressfitting / BSP

Article

Nom dia

Outside diameter of pipe female thread

L

Z

Ubergangsmuffe mit lnnegewinde

Artikel

DN

RohrauBenurchmesser lnnegewinde

L

Z

DAI-1504

12-15

15-Rp 1/2

59

26

DAI-1506

12-20

15-Rp 3/4

62

28

DAI-1804

15

18-Rp 1/2

59

26

DAI-1806

15-20

18-Rp 3/4

62

28

DAI-2204

20-15

22-Rp 1/2

60

26

DAI-2206

20

22-Rp 3/4

63

28

DAI-2210

20-25

22-Rp 1

66

28

DAI-2806

25-20

28-Rp 3/4

63

26

DAI-2810

25

28-Rp 1

69

29

DAI-2812

25-32

28-Rp 11/4

71

29

DAI-3510

32-25

35-Rp 1

67

24

DAI-3512

32

35-Rp 11/4

75

30

DAI-3514

32-40

35-Rp 11/2

75

30

DAI-4212

40-32

42-Rp 11/4

71

22

DAI-4214

40

42-Rp 11/2

79

30

DAI-5414

50-40

54-Rp 11/2

77

23

DAI-5420

50

54-Rp 2

97

39

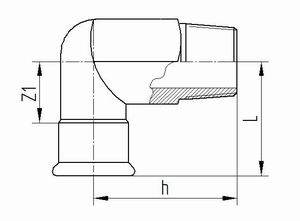

90° male angle adapter pressfitting / BSP

Article

Nom dia

Outside diameter of pipe male thread

L            h            Z

Ubergangswinkel 90° mit AuBengewinde

Artikel

DN

RohrauBenurchmesser AuBengewinde

L            h            Z

DA9O-1504

12/15

15-R 1/2

57          37          37

DA9O-1804

15

18-R 1/2

57          39          37

DA9O-2206

20

22-R 3/4

60          46          39

DA9O-2810

25

28-R 1

67          54          44

DA9O-3512

32

35-R 11/4

75          63          49

DA9O-4214

40

42-R 11/2

84          67          54

DA9O-5420

50

54-R 2

95       78       60

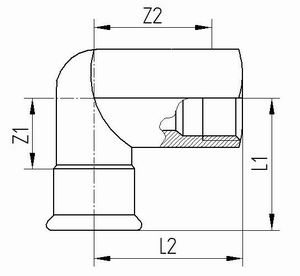

90° female angle adapter pressfitting / BSP

Article

Nom dia

Outside diameter of pipe female thread

L1       L2

Z1       Z2

Ubergangswinkel 90° mit lnnegewinde

Artikel

DN

RohrauBenurchmesser lnnegewinde

L1       L2

Z1        Z2

DA9I-1504

12/15

15-Rp 1/2

57       37

37       24

DA9I-1804

15

18-Rp 1/2

57       39

37       26

DA9I-2206

20

22-Rp 3/4

60       46

39       31

DA9I-2810

25

28-Rp 1

67       54

44       37

DA9I-3512

32

35-Rp 11/4

75       63

49       44

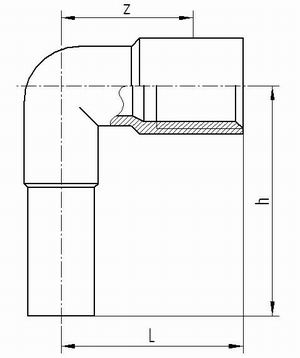

90° female extension elbow plain end/BSP

Article

Nom dia

Outside diameter of pipe female thread

L             h            Z

Ansatzwinkel 90° mit lnnengewinde und einseitigem Einschiebende

Artikel

DN

RohrauBendurchmesser d

L             h             Z

DA9IS-1504

12/15

15-Rp 1/2

36           53           23
