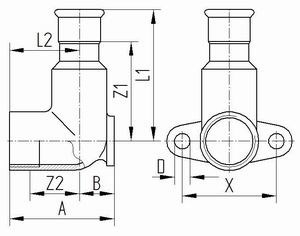

90° female angle adapter pressfitting /BSP

Article

Nom dia

Outside diameter of pipe female thread

    L1  L2  A   B  Z1  Z2  D  X

Deckenwinkel 90° mit lnnegewinde

Artikel

DN

RohrauBenurchmesser lnnegewinde

    L1  L2  A   B  Z1  Z2  D  X

DA9-1504

12

15-Rp 1/2

   50 30  43 13 28 17  5 34

DA9-1804

15

18-Rp 1/2

   50 30  43 13 30 17  5 34

DA9-2206

20

22-Rp 3/4

   54 34  51 17 33 20  6 40

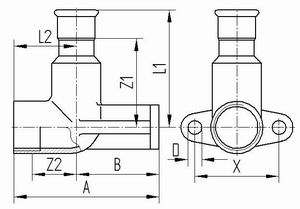

90° female elbow with wall plate / WCI BSP / pressfitting

Article

Nom dia

Outside diameter of pipe female thread

    L1  L2  A   B  Z1  Z2  D  X

Deckenwinkel 90° / WA mit lnnegewinde

Artikel

DN

RohrauBenurchmesser lnnegewinde

    L1  L2  A   B  Z1  Z2  D  X

DA9L-1504

12

15-Rp 1/2

  50 30 65 35 30 17 17 34

DA9L-1804

15

18-Rp 1/2

  50 30 65 35 30 17 17 34

DA9L-2206

20

22-Rp 3/4

  54 34 65 31 34 20 18 40

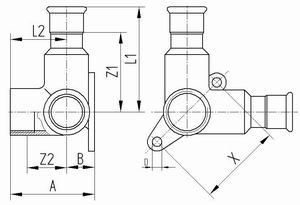

90°/2 female elbow with wall plate BSP /2 pressfitting outlets

Article

Nom dia

Outside diameter of pipe female thread

    L1  L2  A   B  Z1  Z2  D  X

Deckenwinkel 90° / 2 mit lnnegewinde

Artikel

DN

RohrauBenurchmesser lnnegewinde

    L1  L2  A   B  Z1  Z2  D  X

DA9T-1504

12

15-Rp 1/2-15

   60  30 45 13 40 17 5  39

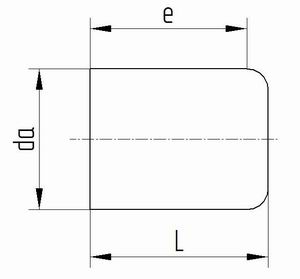

Plug

Article

Nom dia

Outside diameter of pipe OD

L

e

Verschlussstopfen

Artikel

DN

RohrauBendurchmesser d

L

e

DC-15

12

15

33

20

DC-18

15

18

33

20

DC-22

20

22

34

21

DC-28

25

28

36

23

DC-35

32

35

40

26

DC-42

40

42

44

30

DC-54

50

54

49

35
