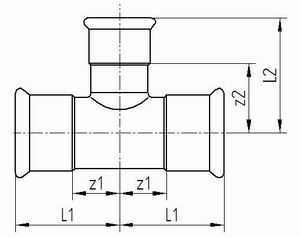

Reducing tee

Article

Nom dia

Outside diameter of pipe OD

L1    L2

Z1    Z2

T-Stuck mit reduziertem Abgang

Artikel

DN

RohrauBendurchmesser d

L1    L2

Z1    Z2

DRT-1815

15/12

18-15-18

34    41

14    21

DRT-2215

20/12

22-15-22

37    43

16    23

DRT-2218

20/15

22-18-22

37    55

16    35

DRT-2815

25/12

28-15-28

42    45

19    25

DRT-2818

25/15

28-18-28

42    45

19    25

DRT-2822

25/20

28-22-28

42    47

19    26

DRT-3515

32/12

35-15-35

50    49

24    29

DRT-3518

32/15

35-18-35

50    50

24    30

DRT-3522

32/20

35-22-35

50    51

24    30

DRT-3528

32/25

35-28-35

50    52

24    29

DRT-4222

40/20

42-22-42

57    53

27    32

DRT-4228

40/25

42-28-42

57    56

27    33

DRT-4235

40/32

42-35-42

57    61

27    35

DRT-5422

50/20

54-22-54

69    59

34    38

DRT-5428

50/25

54-28-54

69    64

34    41

DRT-5435

50/32

54-35-54

69    67

34    41

DRT-5442

50/40

54-42-54

69    70

34    40

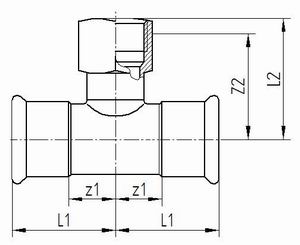

Branch tee BSP female outlet

Article

Nom dia

Outside diameter of pipe female thread

L1    L2

Z1    Z2

T-Stuck mit Abgang lnnengewinde

Artikel

DN

RohrauBendurchmesser d

L1    L2

Z1    Z2

DTI-1504

12/15

15-Rp 1/2 -15

    32    36

    12     21

DTI-1804

15

18-Rp 1/2 -18

    34    41

    14     26

DTI-1806

15/20

18-Rp 3/4 -18

    34    44

    14     28

DTI-2204

20/15

22-Rp 1/2 -22

    37    40

    16    25

DTI-2206

20

22-Rp 3/4 -22

    37    46

    16    30

DTI-2804

25/15

28-Rp 1/2 -28

    42    42

    19    27

DTI-2806

25/20

28-Rp 3/4 -28

    42    50

    19    34

DTI-3504

32/15

35-Rp 1/2 -35

    50    48

    24    33

DTI-3506

32/20

35-Rp 3/4 -35

    50    54

    24    38

DTI-4204

40/15

42-Rp 1/2 -42

    57    52

    27    37

DTI-4206

40/20

42-Rp 3/4 -42

    57    57

    27    41

DTI-5404

50/15

54-Rp 1/2 -54

    69    57

    34    42

DTI-5406

50/20

54-Rp 3/4 -54

    69    64

    34    48

DTI-5420

50

54-Rp 2 -54

    69    80

    34    54

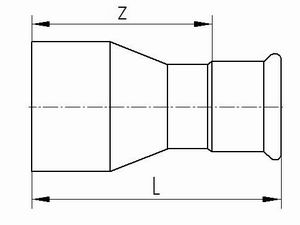

Reducer

Article

Nom dia

Outside diameter of pipe OD

L

Z

Redu-Stuck

Artikel

DN

RohrauBendurchmesser d

L

Z

DCRS-1815

15-12

18-15

55

35

DCRS-2215

20-12

22-15

59

39

DCRS-2218

20-15

22-18

57

37

DCRS-2815

25-12

28-15

66

46

DCRS-2818

25-15

28-18

64

44

DCRS-2822

25-20

28-22

59

38

DCRS-3515

32-12

35-15

73

53

DCRS-3518

32-15

35-18

71

51

DCRS-3522

32-20

35-22

71

50

DCRS-3528

32-25

35-28

68

45

DCRS-4215

40-12

42-15

81

61

DCRS-4218

40-15

42-18

80

60

DCRS-4222

40-20

42-22

79

58

DCRS-4228

40-25

42-28

79

56

DCRS-4235

40-32

42-35

72

46

DCRS-5415

50-12

54-15

97

77

DCRS-5418

50-15

54-18

96

76

DCRS-5422

50-20

54-22

95

74

DCRS-5428

50-25

54-28

95

72

DCRS-5435

50-32

54-35

95

69

DCRS-5442

50-40

54-42

89

59

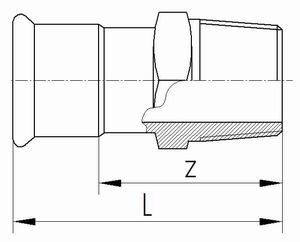

Male adaptor pressfitting / BSP

Article

Nom dia

Outside diameter of pipe male thread

L

Z

Ubergansstuck mit AuBengewinde

Artikel

DN

RohrauBenurchmesser AuBengewinde

L

Z

DAO-1504

12-15

15-R 1/2

53

33

DAO-1506

12-20

15-R 3/4

57

37

DAO-1804

15

18-R 1/2

53

33

DAO-1806

15-20

18-R 3/4

57

37

DAO-2204

20-15

22-R 1/2

54

33

DAO-2206

20

22-R 3/4

58

37

DAO-2210

20-25

22-R 1

61

40

DAO-2806

25-20

28-R 3/4

61

38

DAO-2810

25

28-R 1

64

41

DAO-2812

25-32

28-R 11/4

68

45

DAO-3510

32-25

35-R 1

68

42

DAO-3512

32

35-R 11/4

72

46

DAO-3514

32-40

35-R 11/2

73

47

DAO-4214

40

42-R 11/2

77

47

DAO-4212

40-32

42-R 11/4

78

48

DAO-5420

50

54-R 2

83

48

DAO-5414

50-40

54-R 11/2

89

54
